Die-Cut and Pre-Cut Shapes

Custom Die-Cut and Kiss-Cut Designs

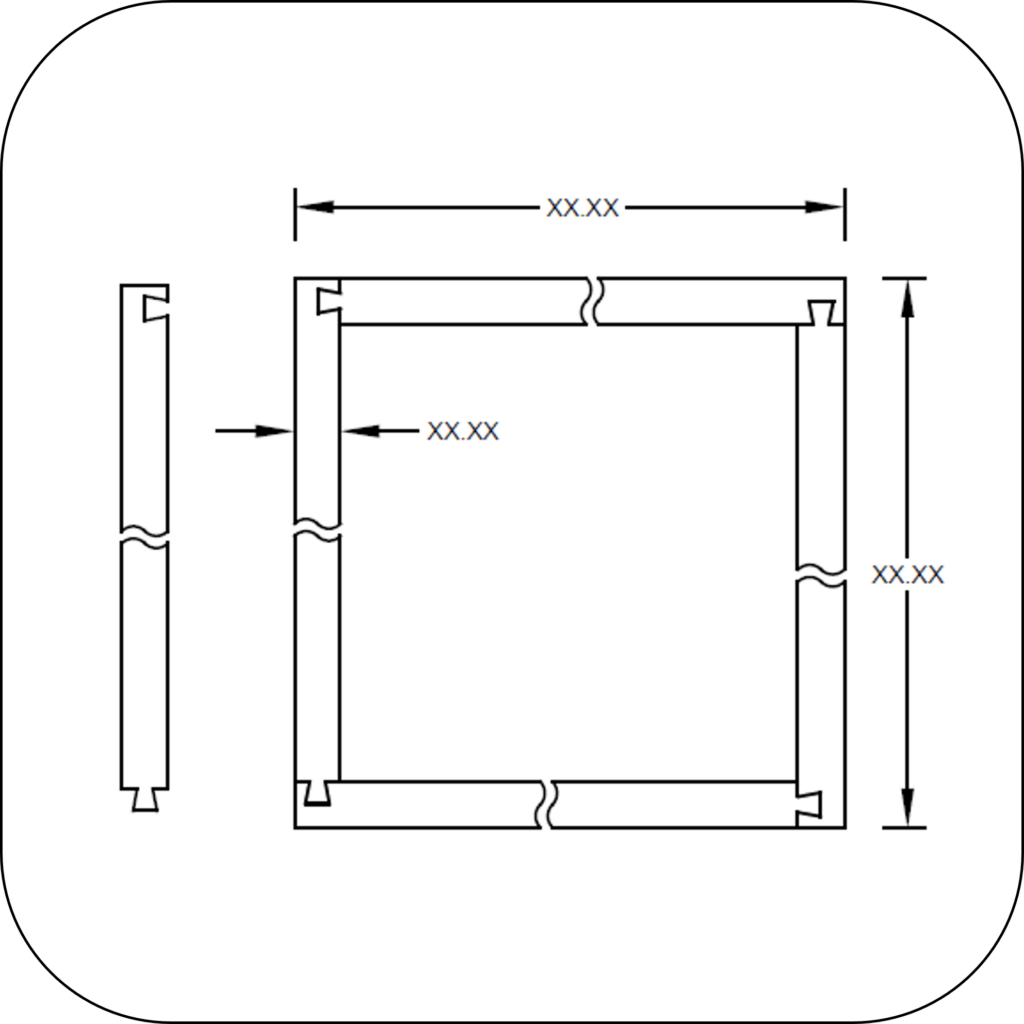

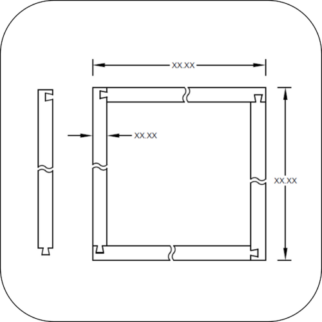

Dove Tail / Interlocked:

  • Interlock designs that allow for connecting strips at corners
  • Minimizes material waste
  • Avialable in sqaure, rectangle, and circle gasket shapes

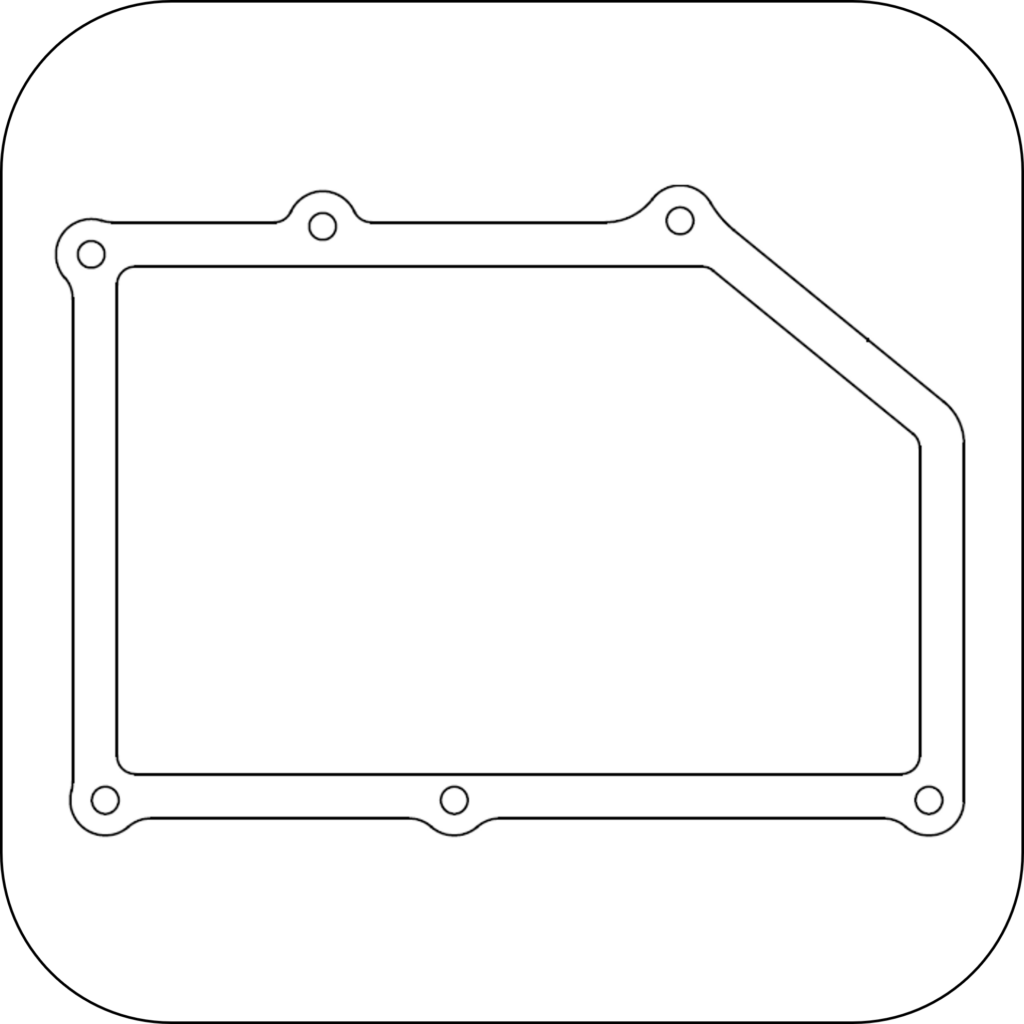

Custom Gaskets:

  • Customizable size, shape, and material
  • Can accommodate complex shapes and designs
  • Provides a seamless seal

Pop Out Gasket Design:

  • Seamless hinged gasket to reduce risk of leaks
  • Reduces material waste of traditional gasket shape
  • Available in squares, rectangles, and circle shaped gaskets

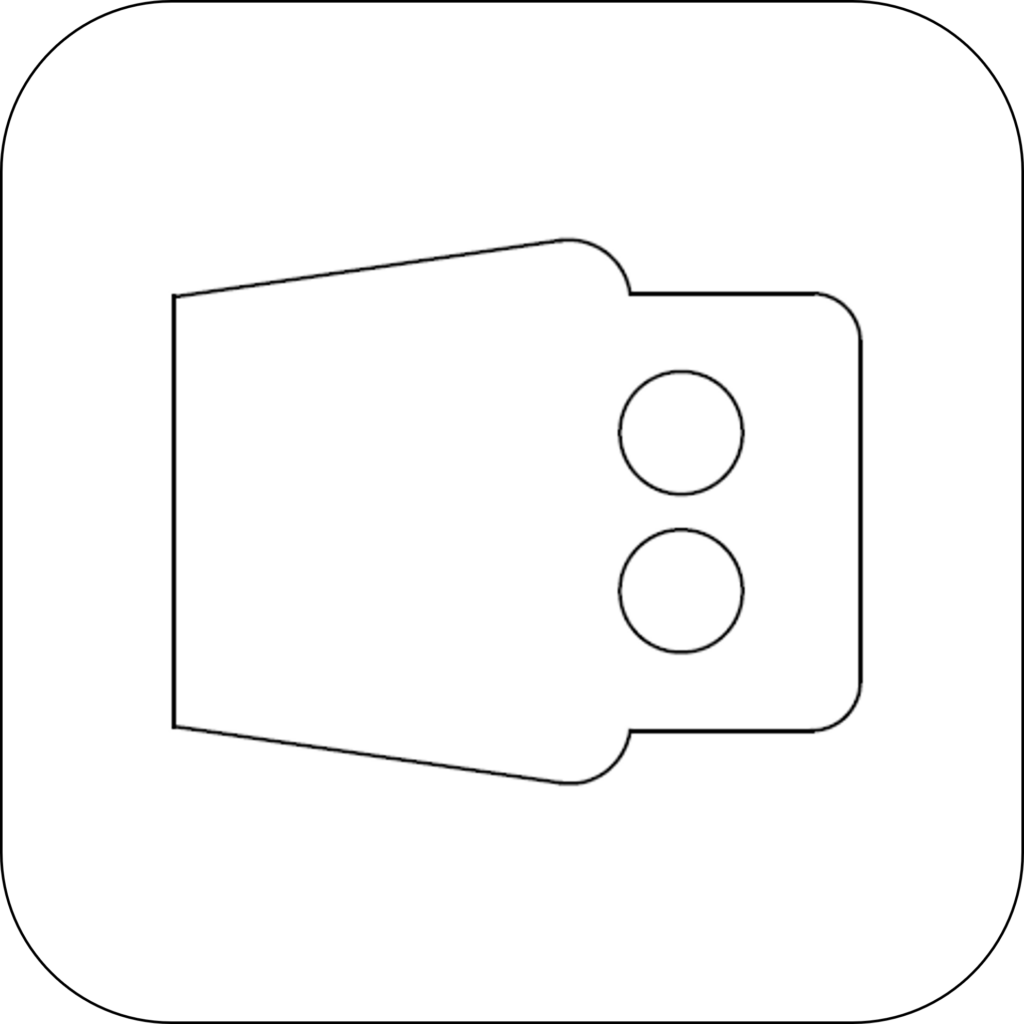

Rapid Prototyping:

  • Custom foam parts made with CNC machine
  • Produces elaborate geometries and designs
  • Can hold a tolerance of 0.01″ depending on the material

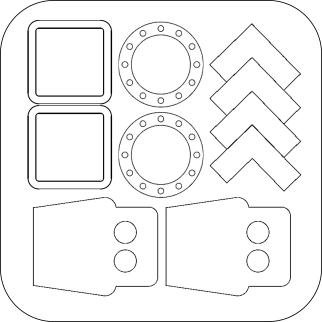

Nested Kit:

  • A collection of custom shapes in a single kit
  • Ensures efficient assembly and usage of components
  • Optimizes inventory management space

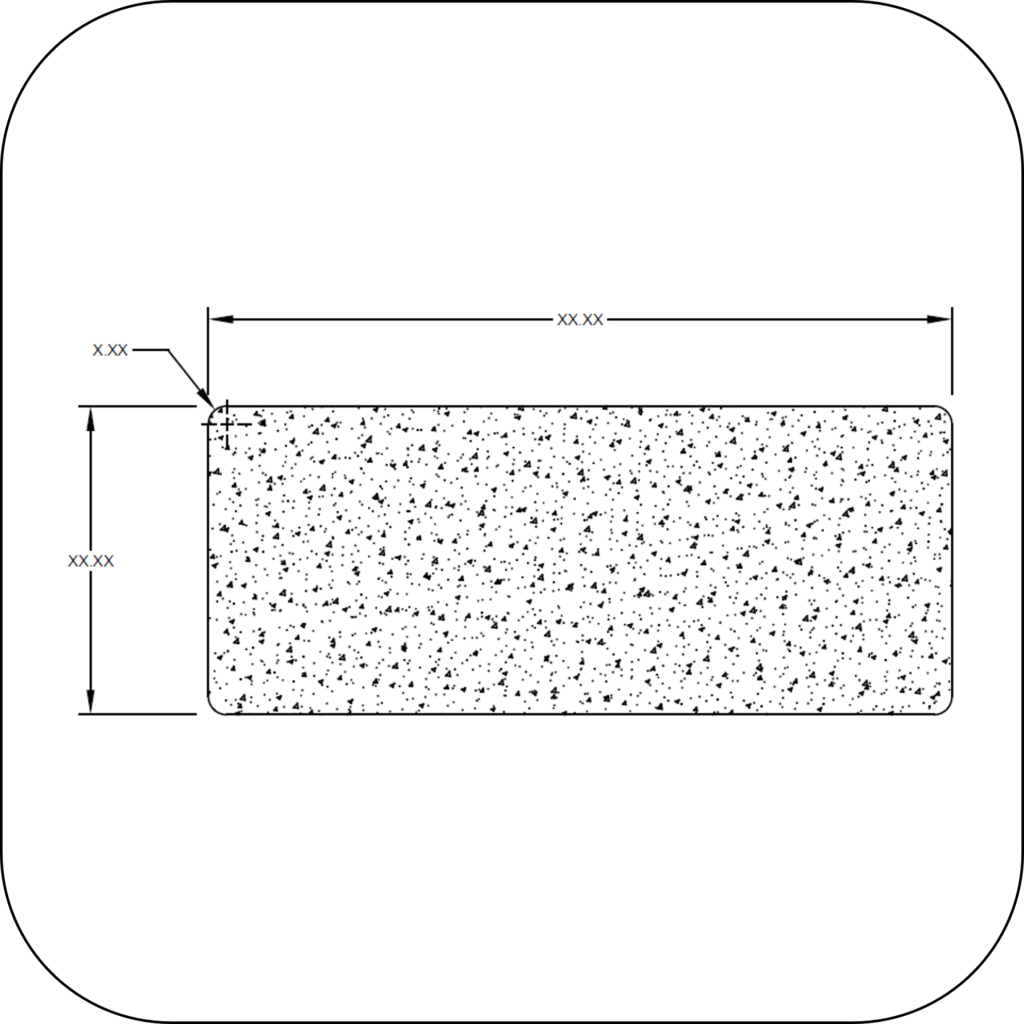

Sheets:

  • Custom sheets of any size
  • Radius or 90° corners
  • With or without adhesive
  • Applications include non-slip material for steps or ladders, matting for workplaces, shelving, or for gasket cutting

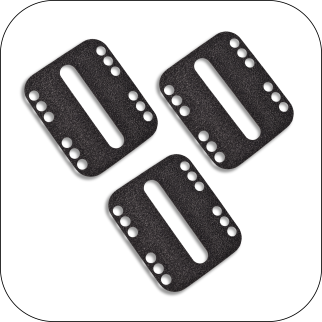

Die-Cut Separate:

  • The custom pieces are cut all the way through the material and the liner paper
  • Finished products are completely separate from each other

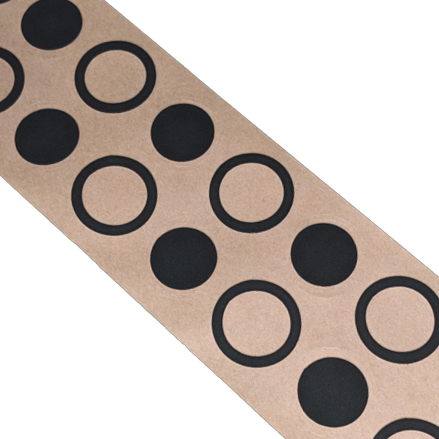

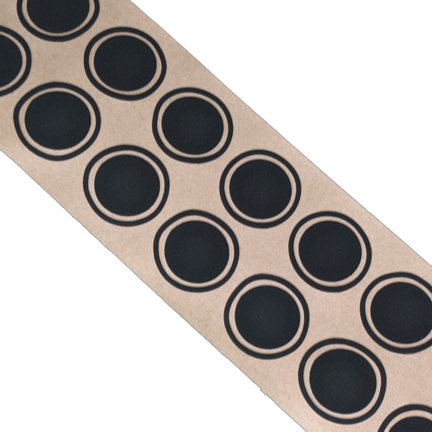

Kiss-Cut on a Roll:

  • A die-cut that creates cuts on a material without penetrating the liner paper
  • Finished Products are connected by liner paper
  • Option of removing the waste webbing of the roll or leave it intact

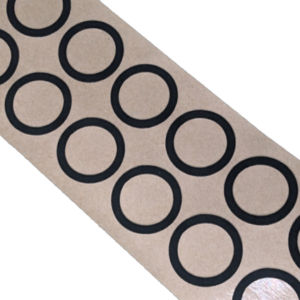

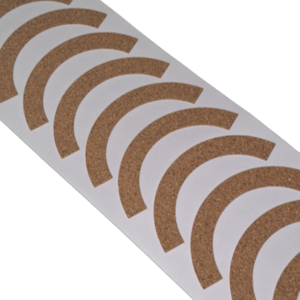

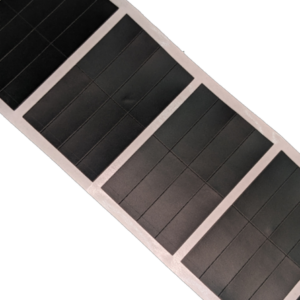

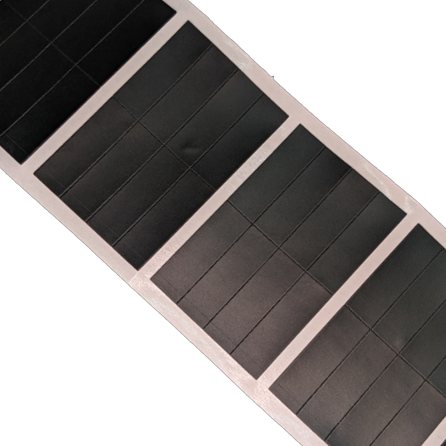

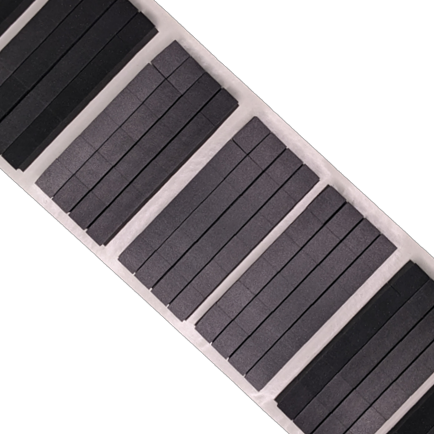

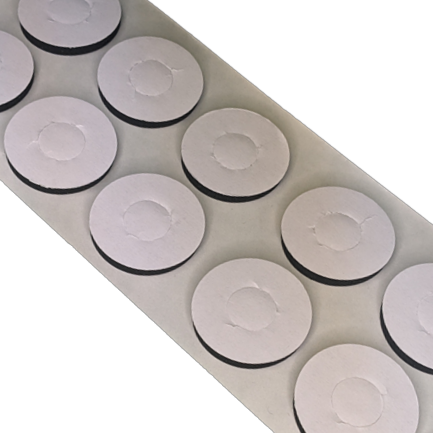

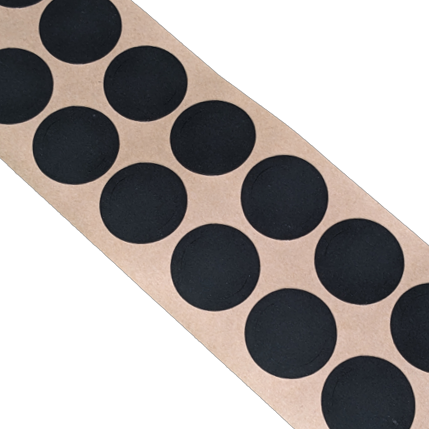

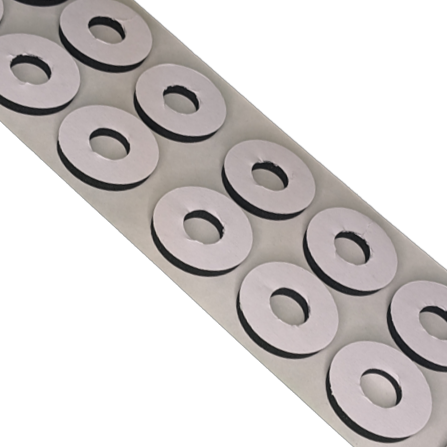

Examples of Die-Cuts and Kiss-Cuts

Die Cutting Capabilities

Rotary die-cutting is one of the most popular and versatile methods of diecutting. This process uses a cylinder-shaped die to cut, crease, and perforate our adhesive backed products. This method is well suited for large-scale production runs, with the ability to quickly and easily produce high volumes of parts without sacrificing quality.

Rotary die-cutting is capable of producing fully customized parts with complex shapes, intricate details, and precise tolerances. Additionally, the cylinders used in rotary die-cutting can be replaced relatively quickly and easily when changing between different die designs.

Pres-On can accommodate a variety of thin-gauge materials. Our rotary die-cutting machines can run material with a maximum thickness of 1/4 inches. The roll or sheet can be from 1/2 inches to up to 16 inches in width.

Flatbed die-cutting, also known as stamping or a punch press is a versatile process that can be used to cut complex shapes and intricate details in our adhesive backed products. This method uses a flatbed press with a die board and a flatbed die to precisely cut materials into complex shapes and sizes.

Furthermore, flatbed die-cutting is generally well suited for low volume projects that require consistent cuts, as well as larger sized products. It is great for producing parts with high precision and accuracy, making it a popular choice for producing parts for industrial and commercial applications. Also, the precision and accuracy of flatbed die-cutting can make it a great choice for projects that require precise tolerances and intricate details.

The maximum sizes for Pres-On’s flatbed die-cutting machine are 38 inches to 54 inches.

Kiss-cutting is a die-cutting process that is used to cut a specific shape without cutting all the way through. This method is great for producing custom shapes while making use of as much of the material as possible. A vast majority of Pres-Ob custom made adhesive backed products are made with the kiss-cut method.

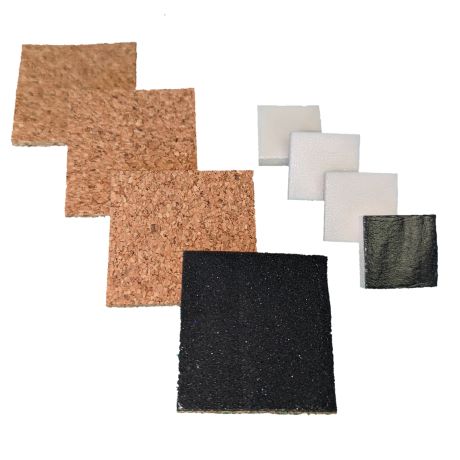

Furthermore, this kiss-cut method is used to create our popular cork or foam separator pads for the glass and window industry. Additionally, Pres-On’s kiss-cut shapes and parts can be removed from their backing with minimal effort.

Also, similar to our other die-cutting machines, Pres-On’s can kiss-cut a variety of thin-gauge materials. Our machines can run material with maximum of 1/4 inches thick. The roll or sheet can be from 1/2 inches to up to 16 inches in width.

CNC cutting, or digital cutting, uses a CNC machine to cut through foam and other materials.  An operator would instruct the machine by uploading a CAD file.  The digital cutting machine then reads the file and uses high-frequency vibration of a blade to create a smooth and precise cut.

The advantage of digital cutting is its versatility. It can produce unique designs without a die and can cut much larger shapes. However, digital cutting is a much slower process than Pres-On’s other cutting methods. CNC custom cutting is ideal for rapid prototyping. Furthermore, Pres-On’s custom CNC cutting has excellent dimensional tolerances held for exacting specifications. Our newest machine can hold tolerances up to .005″ on various materials.

cutting is its versatility. It can produce unique designs without a die and can cut much larger shapes. However, digital cutting is a much slower process than Pres-On’s other cutting methods.
