SG6500 Series Medium Density Structural Glazing Tapes

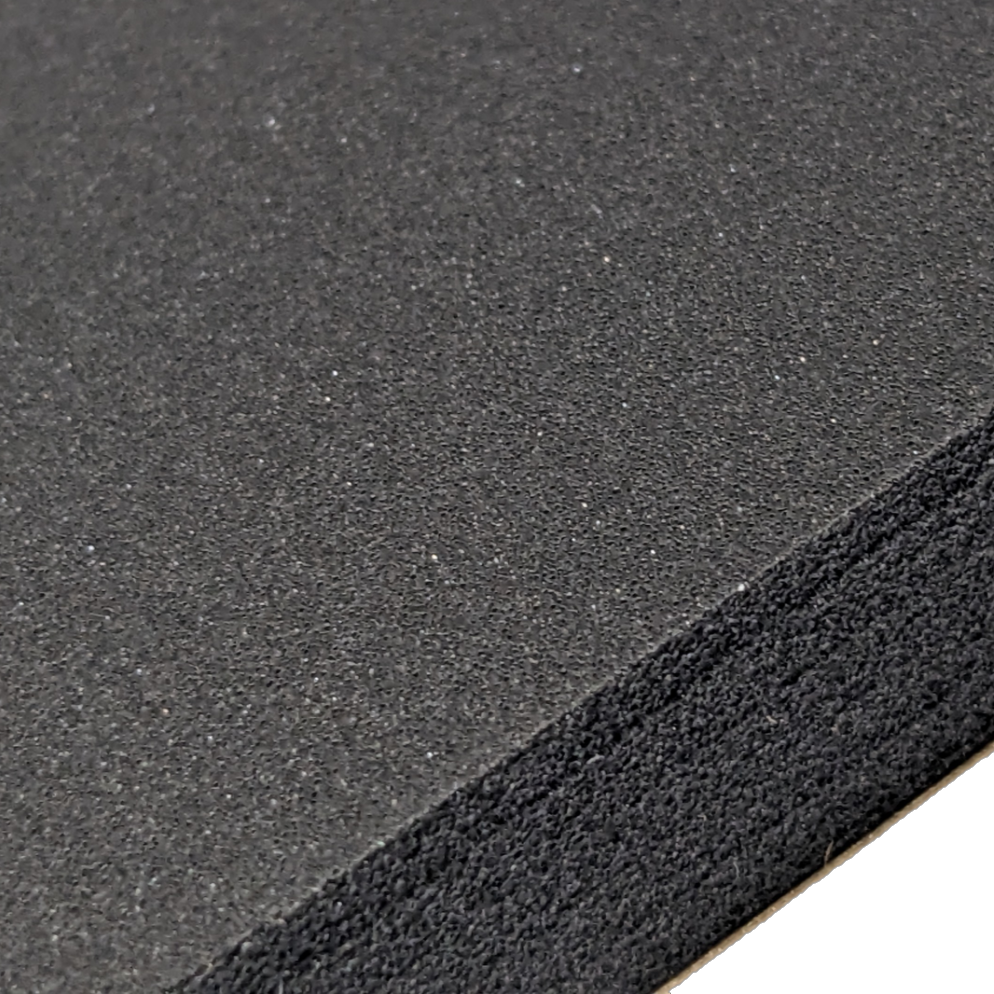

Pres-On SG6500 Series Medium Density Structural Glazing Tapes are composed of black, open cell urethane foam coated with UV resistant, pressure sensitive acrylic adhesive on one side. This high-performance product is ideal for weatherproofing and thermal insulating.
Products Details
- Technical Specs
- Product Highlights
- Applications
- Available Options
| Standard Roll Sizes | Serial Number | Thickness | Length |
|---|---|---|---|
| All rolls available in widths from 3/16” to 54” | SG6412 | 1/8” | 50’ |
| SG6425 | 1/4” | 50’ | |
| SG6437 | 3/8” | 25’ | |
| SG6512 | 1/8” | 50’ | |
| SG6525 | 1/4” | 50’ | |
| SG6537 | 3/8” | 25' |
| Adhesion Properties | Test | Typical Performance | Test Method |
|---|---|---|---|
| Loop Tack | 60 oz/in typical | TLM1 LIB1 | |
| Adhesion @ 72°F to the following | |||
| - Steel, immediate | 2.5 lbs/in width | PSTC-1 | |
| - Steel, after 48 hours | 3.5 lbs/in width or foam tear | PSTC-1 | |
| - Aluminum, immediate | 2.5 lbs/in width | PSTC-1 | |
| - Aluminum, after 48 hours | 3.0 lbs/in width or foam tear | PSTC-1 | |
| - Glass, immediate | 2.0 lbs/in width | PSTC-1 | |
| - Glass, after 48 hours | 3 -5.0 lbs/in width or foam tear | PSTC-1 | |
| - Powder Paint, immediate | 2.0 lbs/in width | PSTC-1 | |
| - Powder Pain, after 48 hours | 3 -5.0 lbs/in width or foam tear | PSTC-1 | |
| Static Shear @ 72°F 1 x 1 x 500 grams | indefinite | PSTC-7 | |
| Static Shear @ 72°F 1 x 1 x 1000 grams | 1000 hours minimum | PSTC-7 | |
| Water and Humidity Resistance | excellent | Pres-On PTM-3 | |
| Application Temperature | 45°F to 120°F | Pres-On PTM-1 | |
| Service Temperature | 40°F to 180°F | Pres-On PTM-2 | |
| Shelf Life | 1 year stored at room temperature |
| Physical Properties | Property | Test Method | Unit of Measure | Result |
|---|---|---|---|---|
| Density | ASTM D 3574 | lb/ft2 | 20 | |
| - | - | kg/m3 | 272-368 | |
| Hardness | ASTM D2240 | Shore A | 30 | |
| ASTM D1056 | Shore 00 | 78 | ||
| Tensile Strength | ASTM D3574 | psi | 150 (min) | |
| - | kPa | 1034 (min) | ||
| Elongation | ASTM D3574 | % | 120 (min) | |
| Tear Strength | ASTM D624 | lb/in | 25 (min) | |
| - | kN/m | 4.4 (min) | ||
| Compression Set (50%-22 hrs @ 73°F) | ASTM D1056 | % | 3 (max) | |
| Compression Force Deflection 25% | ASTM D35742 | psi | 19-25 | |
| - | kPa | 131-172 | ||
| Compression @ 25% | ASTM D35742 | psi | 30-50 | |
| - | kPa | 207-345 | ||
| Color | N/A | N/A | Black | |
| Flammability | FMVSS-302: Pass (0.63 or Thicker)1 |
- High-strength polyurethane foam substrate is chemically compatible with all silicones tested to ASTM C1087*
- Semi-rigid foam acts as a spacer for structural glazing systems
- Exhibit high initial adhesion, speeding on-site fabrication
- Open cell urethane foam allows for optimum silicone curing
- Certified no color change or staining after independent testing*
- Resist temperature variations, fungi, oxidation and discoloring with age
- Adhere to bare metal, glass, and painted surfaces
- Reduce heat transfer, improves wall performance, and can support LEED points
*List of manufacturers and silicones tested available upon request. Refer to silicone manufacturer for compatibility information. Each project should be individually lab tested to confirm compatibility between Pres-On SG6500, structural silicone, and all other adjacent materials.
Pres-On SG6500 Series Medium Density Structural Glazing Tapes are ideal for use in many architectural glass applications including: thermal break on storm windows and doors, spacing for structural glazing systems, bonding wide joints, and curtain wall construction.
- Structural Glazing
- Window Spacing
- Curtain Walls
- Weather Stripping
- Thermal Shielding
- Joint Filling / Sealing
Application Notes
SG6500 is a spacer material and not intended to be a structural component. Ensure bonding surfaces are well unified, clean, dry and free of dirt and oils. Apply firm and even pressure to improve adhesive-to-surface contact. Allow proper temperature and time to enhance bond strength as adhesive flows onto the surface.
- Release Liner: Brown Kraft Paper
