Additional information
| Material Category | |
|---|---|
| Material | |
| Cell Structure | |
| Stock or Special Order | |
| Type of Tape | |
| Adhesive | |
| Thickness | |
| Produced as | |
| Roll Widths | |
| Softness | |
| Color | |
| Texture | |
| Durability | |
| Material Price | |
| Foam High Temperature Rating | |
| Foam Low Temperature Rating | |
| Outdoor | |
| Adhesive Temperature Range | |
| Compression Deflection | |
| Durometer Shore | |
| Density | |
| Tensile Strength | |
| Elongation | |
| Flammability | |
| Skin Contact | |
| Chemical Resistance | |
| Thermal Conductivity | |
| Additional Specs | |
| Reach / RoHS | |
| Made in: | |
| Test Methods: | |
| Disclaimer a: | Technical data presented above is the foam/material prior to the adheisve. |
| Disclaimer b: | End user is responsible for determining the suitability of the product to application. |
| Terms and Conditions |
Technical data

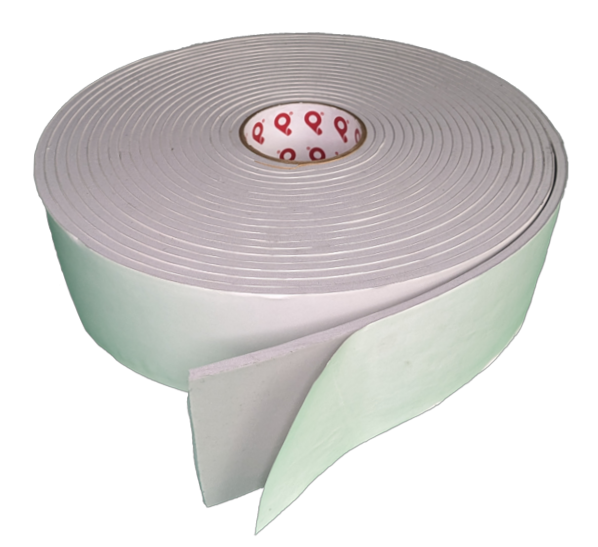

Reverse wound closed cell PVC foam tape, low density, from the VF5000 series: seals out light, air, dust and moisture and cushions against vibration and noise.
- Closed cell polyvinyl chloride foam, reverse wound
- Seals out light, air, dust and moisture
- Cushions against vibration and noise
- Resists most solvents, chemicals and UV
- Cost-effective for a wide range of industry uses
Markets: Transportation · Automotive · Appliance · Construction · HVAC · Retail · General assembly
| Density | 7 lb/ft³ | |
|---|---|---|
| Shore hardness "00" | 25 | |
| Force to compress | 3.6 psi | |
| Compression deflection | 1.3 psi | |
| Water absorption | 3% | |
| Tensile strength | 30 psi | |
| Elongation | 190 |
| 180° peel adhesion, stainless steel | 50 oz/in width at 20 minute dwell; 75 oz/in at 24 hour dwell | ASTM D1000 |
|---|---|---|
| 180° peel adhesion, polypropylene | 25 oz/in width at 20 minute dwell | ASTM D1000 |
| Loop tack, stainless steel | 40 oz/in (adhesive failure) | TLMI |
| Static shear, stainless steel | 7 hours, cohesive failure (1" × 1" × 1000 g, 1 minute dwell) | PSTC-7 |
| Thickness | 1/16" to 3/4" | |
|---|---|---|
| Width | Standard 52"; custom widths available | |
| Uses | Lighting enclosure seals, door and air-filter gaskets, RV inlet gaskets, roof curb and log-home seals |
Source: VF5100 data sheet (PDF). Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
