Additional information
| Material Category | |
|---|---|
| Material | |
| Stock or Special Order | |
| Type of Tape | |
| Adhesive | |
| Thickness | |
| Produced as | |
| Roll Widths | |
| Softness | |
| Color | |
| Texture | |
| Durability | |
| Material Price | |
| Foam High Temperature Rating | |
| Foam Low Temperature Rating | |
| Outdoor | |
| UV Exposure | |
| Adhesive Temperature Range | |
| Durometer Shore | |
| Density | |
| Industry | |
| Reach / RoHS | |
| Made in: | |
| Test Methods: | |
| Disclaimer a: | Technical data presented above is the foam/material prior to the adheisve. |
| Disclaimer b: | End user is responsible for determining the suitability of the product to application. |
| Disclaimer c: | "Stock": Some sizes or adhesive options might be special order. |
| Terms and Conditions |
Technical data

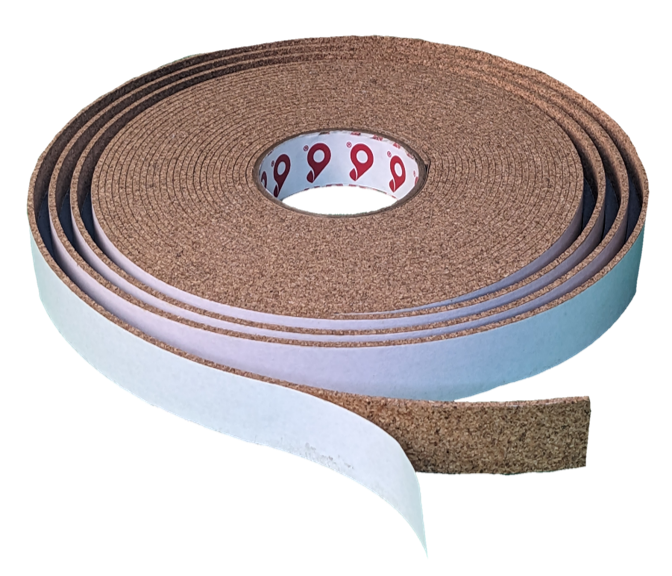

Pres-Bond™ cork tape: granulated cork with a polymeric binder and a high-performance acrylic adhesive designed for critical high-bond applications.
- Rugged granulated cork with polymeric binder (10/20 granule)
- Very high adhesion and holding power
- Attractive cushion / bumper for cabinet doors, furniture and store fixtures
- Adheres securely to wood, plastic and painted surfaces
- Excellent as spacer pads and gaskets; extremely compressible, resistant to wear
Markets: Padding and cushioning for store fixtures, furniture and appliances · Eliminates squeaks between metal panels · Bumper pads for cabinet doors · Weather stripping for wood and metal sash
| Density | 12 lb/ft³ min | ASTM D1564 |
|---|---|---|
| Tensile strength | 70 psi min | ASTM D3574-81 |
| Compression @ 100 psi | 20–35% | ASTM D1056-68 |
| Recovery (after 100 psi) | 75% min | |
| Flexibility (F = 5) | No cracks |
| Adhesion to steel @ 72°F | Immediate 3.5 lb/in width or foam tear; after 24 h 7.0 lb/in or foam tear | PSTC-1 |
|---|---|---|
| Adhesion to polystyrene | Immediate 5.0 lb/in; after 24 h 7.0 lb/in or foam tear | PSTC-1 |
| Adhesion to powder paint | Immediate 3.5 lb/in; after 24 h 7.0 lb/in or foam tear | PSTC-1 |
| Shear @ 72°F, 1" × 1" | 500 g: indefinite; 1000 g: 200 hours minimum | PSTC-7 |
| UV resistance | Excellent | Pres-On PTM-4 |
| Optimal application temperature | 45°F to 80°F | Pres-On PTM-1 |
| Service temperature | −20°F to 200°F | Pres-On PTM-2 |
| Water and humidity resistance | Excellent | Pres-On PTM-3 |
| Shelf life | 1 year stored at room temperature |
| Standard rolls (serial number, thickness, length) | P10403 1/32" 100′ · P10406 1/16" 100′ · P10412 1/8" 50′ | |
|---|---|---|
| Width | Standard 52"; custom widths available |
Source: P10400 data sheet (PDF). Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
