Additional information
| Material Category | |
|---|---|
| Material | |
| Cell Structure | |
| Stock or Special Order | |
| Type of Tape | |
| Adhesive | |
| Thickness | |
| Produced as | |
| Roll Widths | |
| Softness | |
| Color | |
| Texture | |
| Durability | |
| Material Price | |
| Foam High Temperature Rating | |
| Foam Low Temperature Rating | |
| Outdoor | |
| Adhesive Temperature Range | |
| Compression Deflection | |
| Durometer Shore | |
| Density | |
| Tensile Strength | |
| Elongation | |
| Flammability | |
| Skin Contact | |
| Chemical Resistance | |
| Thermal Conductivity | |
| Additional Specs | |
| Reach / RoHS | |
| Made in: | |
| Test Methods: | |
| Disclaimer a: | Technical data presented above is the foam/material prior to the adheisve. |
| Disclaimer b: | End user is responsible for determining the suitability of the product to application. |
| Terms and Conditions |
Technical data

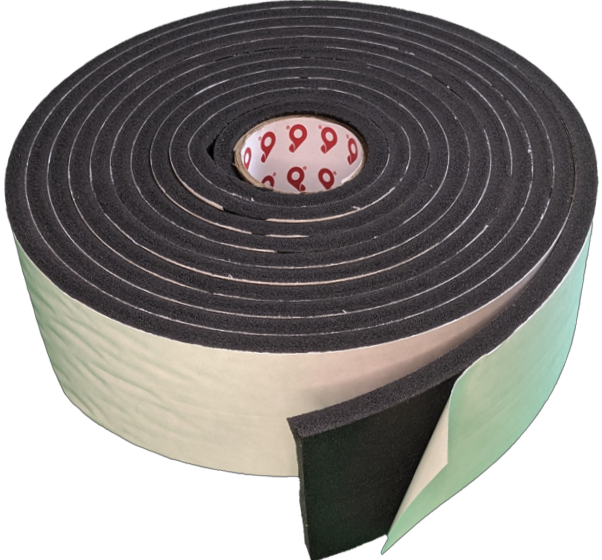

Soft black closed cell PVC foam gasket tape, reverse wound with an acrylic adhesive on one side; biocompatible and approved for PPE.
- Industrial closed cell foam gasket
- Reverse wound (adhesive out) for easy application
- Biocompatible; approved for PPE
| Color | Black | |
|---|---|---|

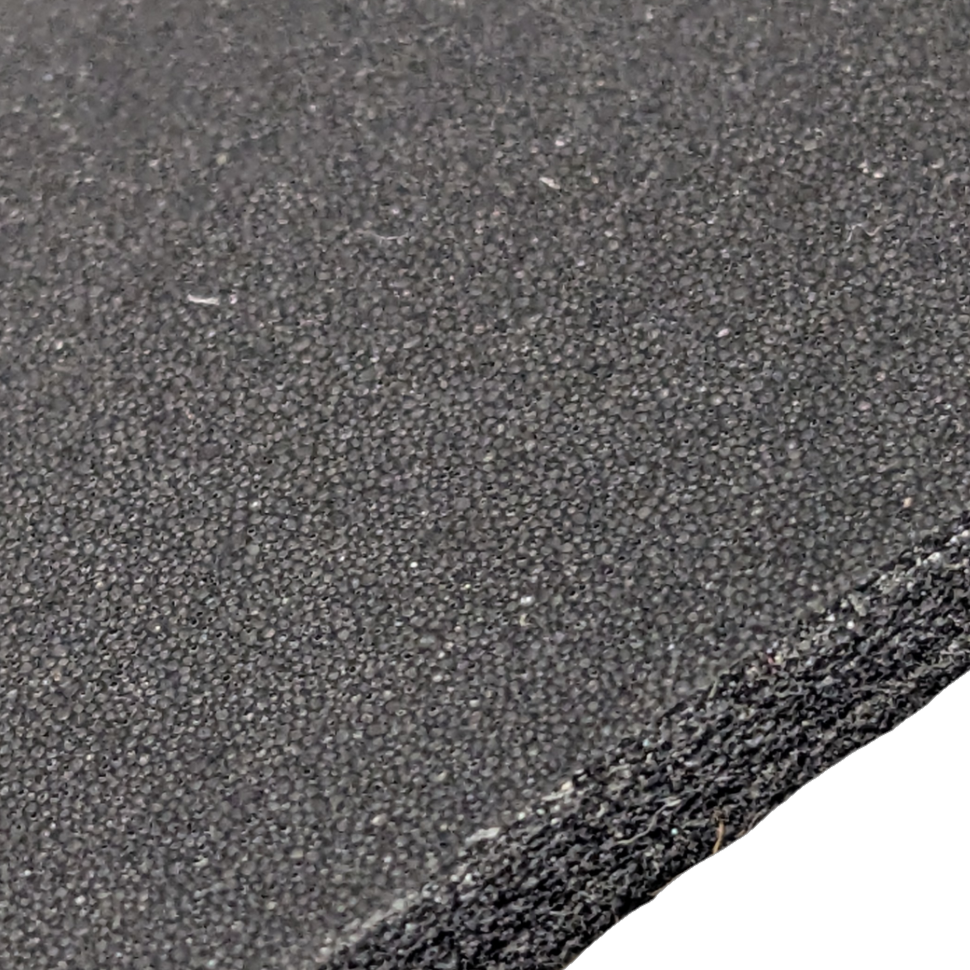

| Texture | Smooth with skin surface | |
| Cell structure | Closed | |
| Shape | Roll, strip, die-cut gasket | |
| Weight (material) | 1/16" 7.0–10.0 lb/ft³ · 1/8" 6.0–9.0 lb/ft³ · 3/16"–1" 5.5–8.5 lb/ft³ | |
| Temperature | −4°F to 179°F | |
| Class | 2A1 | ASTM D1056 |
| Compression force deflection | 1.0 psi | ASTM D1667 |
| Force to compress | 1.8 psi | ASTM D1667 |
| Water absorption | 6% | ASTM D1056 |
| Tensile strength | 25 psi | ASTM D412 |
| Elongation | 150% with adhesive; 160% without | ASTM D412 |
| Thermal conductivity | 0.27 BTU·in/ft²·h·°F | ASTM C518 |
| Flammability | Self-extinguishing | MVSS 302 |
| Hardness | 25 Shore OO | ASTM D2240 |
| Fungi resistance | Excellent | |
| Oxidation and weather resistance | Excellent |
| Standard adhesive | Acrylic, permanent | |
|---|---|---|
| Outdoor rating | Excellent | |
| Adhesion to stainless steel | 20 oz/in min; typical >30 oz/in | |
| Shelf life | 1 year at room temperature and humidity | |
| No adhesive (special option) | Available |
Source: VF5600 data sheet (PDF), revision 8/9/25. Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
