Additional information
| Type of Seal | |
|---|---|
| Cap Size | Custom Size, 18mm, 20mm, 24mm, 28mm, 33mm, 38mm, 43mm, 45mm, 48mm, 50mm, 53mm, 58mm, 59mm, 63mm, 70mm, 83mm, 89mm, 100mm, 110mm, 120mm |
| Bottle Material | |
| Liner Thickness | |
| Product in Bottle | |
| Cap Liner Print | |
| Cap Liner Insertion | |
| Cap Liner Removal | |
| Tagged as |
Technical data

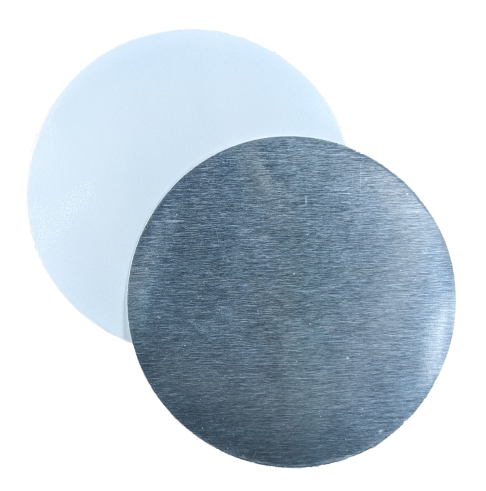

HISU7 one-piece heat induction seal: .007" polyethylene foam backed aluminum foil seal with a universal heat seal film for PE, PET, PP, PVC, PS and most treated glass bottles; easy-peel removable.
- For products that need easy-opening seals with low chemical-resistance requirements
- Requires a heat induction machine and material compatibility confirmation
| Composition | One piece: polyethylene foam .0070" · aluminum foil .0010" · heat seal film .001"–.002" (total .009"–.010", ±10%) | |
|---|---|---|
| Sizes (pre-cut) | Standard cap sizes from 18 mm to 120 mm; custom sizes available | |

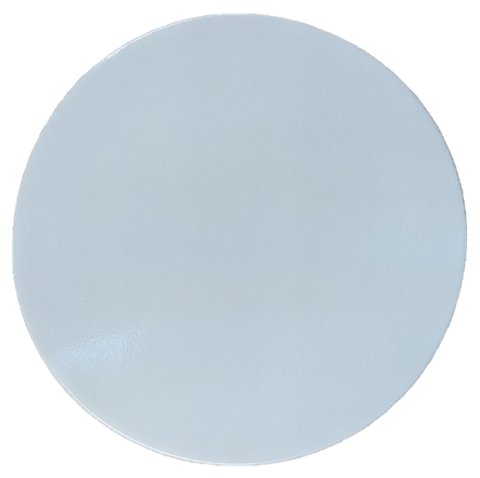

| Visual | Top side white PE foam, no print; bottom side foil (heat seal layer transparent) | |
| Special print | Custom print on top side available (large quantity orders) | |
| FDA | Material structure complies with FDA requirements under 21 CFR and EEC | |
| Oxygen and water vapor transmission | Essentially zero (O2TR, WVTR, MVTR) | |
| Storage | 1 year shelf life in a dry, temperature-controlled environment | |
| Note | Liners are made to order and not refundable; the end user is responsible for confirming liner material and size compatibility |
Source: HISU data sheet (PDF). Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
