Additional information
| Material Category | |
|---|---|
| Material | |
| Cell Structure | |
| Stock or Special Order | |
| Type of Tape | |
| Adhesive | |
| Thickness | 1/16", 3/32", 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1" |
| Produced as | |
| Roll Widths | |
| Softness | |
| Color | |
| Texture | |
| Durability | |
| Material Price | |
| Foam High Temperature Rating | |
| Foam Low Temperature Rating | |
| Outdoor | |
| UV Exposure | |
| Adhesive Temperature Range | |
| ASTM D1056 Classification | |
| ASTM D 1056-67 (outdated) | |
| Compression Deflection | |
| Durometer Shore | |
| Density | |
| Tensile Strength | |
| Compression Set | |
| Elongation | |
| UL Rating | |
| Flammability | |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3RX, NEMA 3S, NEMA 3SX, NEMA 3X, NEMA 4, NEMA 4X, NEMA 5, NEMA 6, NEMA 6P, NEMA 12, NEMA 12K, NEMA 13 |
| R Value | |
| Reach / RoHS | |
| Made in: | |
| Test Methods: | |
| Disclaimer a: | Technical data presented above is the foam/material prior to the adheisve. |
| Disclaimer b: | End user is responsible for determining the suitability of the product to application. |
| Terms and Conditions |
Technical data

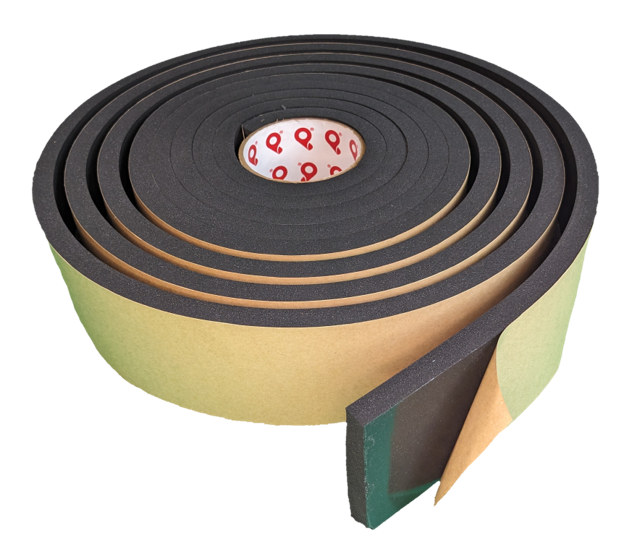

EPDM foam tape, medium density, closed cell gasket, UL listed, with a high-performance acrylic pressure-sensitive adhesive.
- Medium density closed cell gasket
- UL listed; FMVSS-302
- Excellent temperature range
- Compressible
- Resistant to UV and weather
Markets: Enclosures · Gaskets · HVAC · Commercial refrigeration units · Electronics · Outdoor applications
| Material | EPDM | |
|---|---|---|
| Hardness | Medium | |
| Color | Black | |

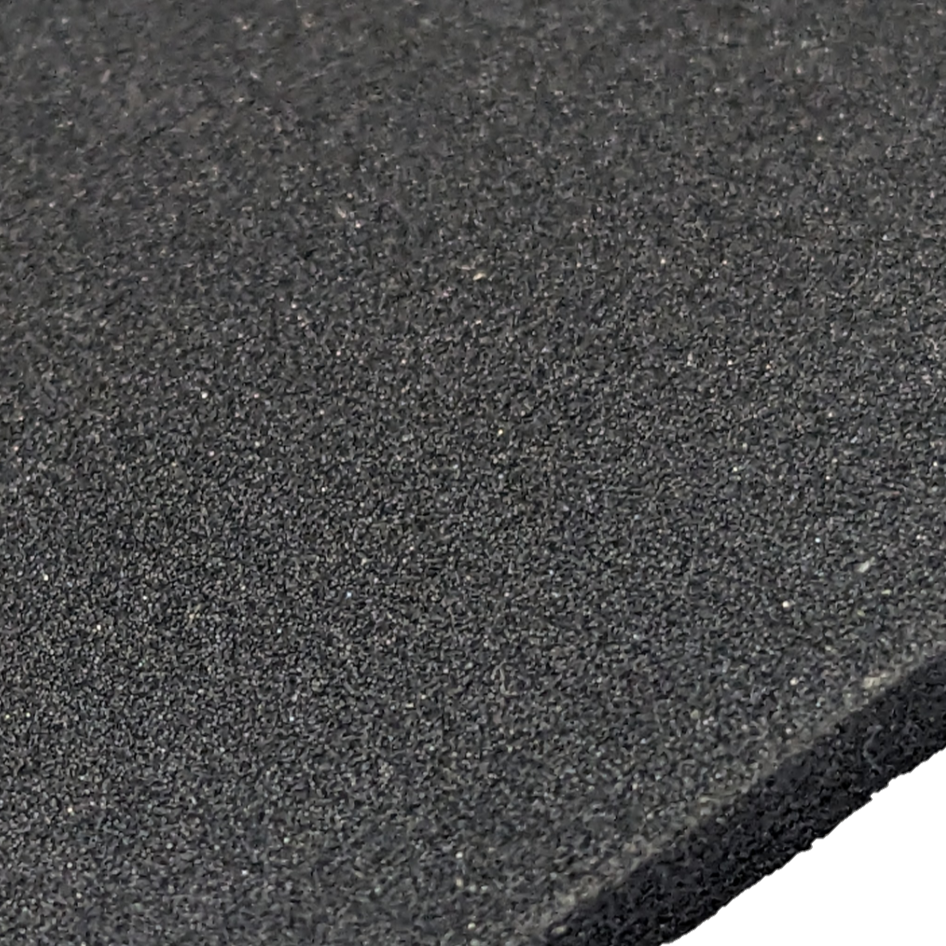

| Cell type | Closed cell foam | |
| Weather resistance (UV) | Excellent | |
| Density | 6–10 pcf | ASTM D1056 |
| Temperature | −70°F to 220°F; 250°F high intermittent | ASTM C534 |
| Pressure to compress 25% | 5–9 psi | ASTM D1056 |
| ASTM D1056 classification | 2A2 | |
| ASTM D1056 suffix compliances | B3, C1, F2, M | |
| ASTM D6576 classification | Type II B, C Soft/Medium | |
| Shore hardness | 40–50 OO durometer (approximate) | |
| Compression set, 50% | 30% max | ASTM D1056 |
| Water absorption | 5% max | ASTM D1056 |
| Tensile strength | 60 psi | ASTM D412 |
| Elongation | 125% | ASTM D412 |
| Flammability | Pass | FMVSS-302 |
| UL listings | UL157, UL508, UL50, UL50E, UL48 |
| Adhesive | Acrylic, permanent | |
|---|---|---|
| Single sided | Yes | |
| Double sided | Available (special order) | |
| Indoor rating | Excellent | |
| Outdoor rating | Excellent | |
| Functional temperature | 0–225°F |
| Foam thickness | 1/16", 3/32", 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1" | |
|---|---|---|
| Roll widths | 1/4" up to 40" | |

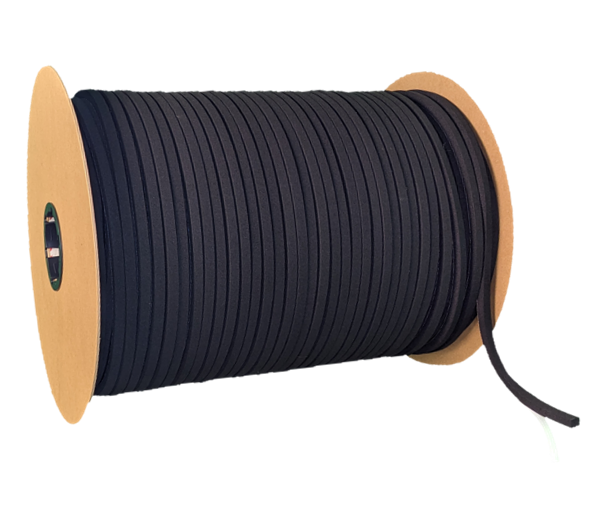

| Roll lengths | 50′ (1/16"–1/4"), 25′ (3/8" and above); long-length spools | |
| Shapes | Customizable cut shapes, sheets |
Source: P9100 data sheet (PDF), revision 01.06.2025. Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
