Medium Soft Density, Closed Cell, Double Sided, and Black Neoprene EPDM Blended Foam Tape

Neoprene / EPDM Blend Foam Tape – Soft – P8200DC – Double Sided

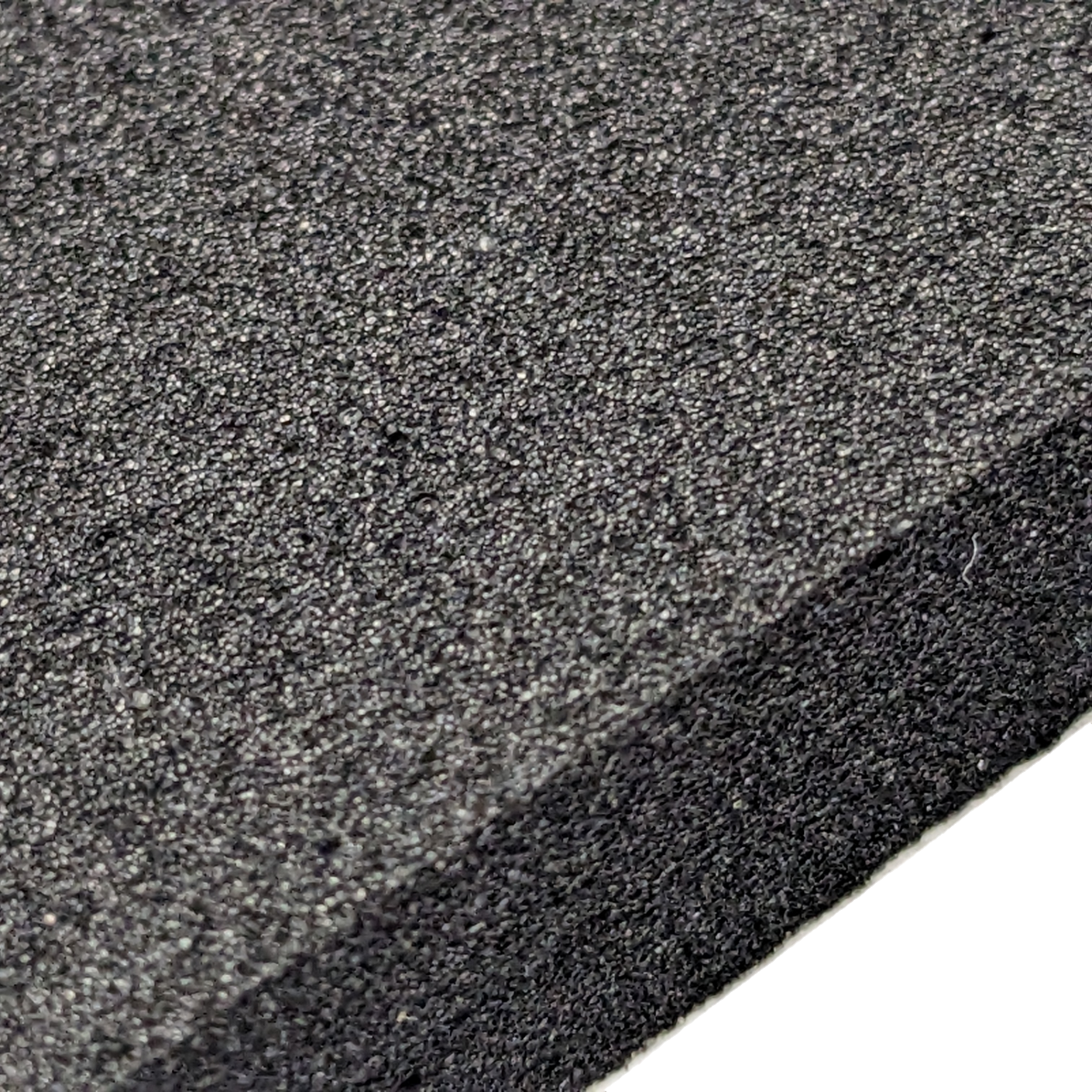

Neoprene / EPDM blend Double Sided Foam Tape. Closed cell soft, black, with a smooth surface.

Durable double sided PSA industrial strength foam with an industry leading adhesive bond. Great for most HVAC, enclosure, construction, all gasket applications.

Adhesive: Pres-On’s superior direct wet coat high-tack permanent acrylic pressure sensitive adhesive (PSA) on both sides with easy-to-use release liner.

Also available in single sided foam tape as our P8200 series.

Produced in rolls, sheets, pre-cut (digital & die-cut) shapes, spools, and other customizable options.

Learn about “Pres-On’s Superior Wet-Coat Adhesive”

SKU: P8200DC Categories: Foam Tape & Gaskets, Neoprene Foam Tape and EPDM Foam Tape

Material Category	Rubber / Synthetic Rubber
Material	Blended EPDM/Neoprene, Neoprene / EPDM / SBR Blend
Cell Structure	Closed Cell
Stock or Special Order	Stock
Type of Tape	Double Sided
Adhesive	Acrylic
Thickness	1/8", 3/16", 1/4", 3/8", 1/2"
Produced as	Rolls, Spools, Sheets, Pre-Cut Shapes
Roll Widths	1/4" to 54" wide
Softness	Soft
Color	Black
Texture	Smooth
Durability	Great
Material Price	Mid-Range
Foam High Temperature Rating	250 F
Foam Low Temperature Rating	-40 F
Outdoor	Excellent
UV Exposure	Fair (limited exposure)
Adhesive Temperature Range	-20 F to 200 F (Acrylic)
ASTM D1056 Classification	2C1
ASTM D 1056-67 (outdated)	SCE 41
Compression Deflection	2-5 psi, 25% compression
Durometer Shore	30-50 OO
Density	4-8 lb/ft³
Tensile Strength	75 psi
Compression Set	25%
Elongation	150%
UL Rating	Yes, UL 94 HF-1, UL 508, UL 50E, UL 157
Flammability	Yes, FMVSS-302, UL 94 HF-1
NEMA Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3RX, NEMA 3S, NEMA 3SX, NEMA 3X, NEMA 4, NEMA 4X, NEMA 5, NEMA 6, NEMA 6P
Application	Displays, General Industrial Applications, Mounting Tape, Signage
Industry	Air Filter, Clean Rooms, Construction, Data Center, Display, Doors, Electronics, Enclosures, HVAC, Marine, RVs, Trailer
Reach / RoHS	Yes
Made in:	Bolingbrook, IL USA
Test Methods:	See technical data sheets for full data and test methods.
Disclaimer a:	Technical data presented above is the foam/material prior to the adheisve.
Disclaimer b:	End user is responsible for determining the suitability of the product to application.
