Additional information
| Material Category | |
|---|---|
| Material | |
| Cell Structure | |
| Stock or Special Order | |
| Type of Tape | |
| Adhesive | |
| Thickness | 1/32", 1/16", 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 3/4", 1" |
| Produced as | |
| Roll Widths | |
| Softness | |
| Color | |
| Texture | |
| Durability | |
| Material Price | |
| Foam High Temperature Rating | |
| Foam Low Temperature Rating | |
| Outdoor | |
| UV Exposure | |
| Adhesive Temperature Range | |
| ASTM D1056 Classification | |
| ASTM D 1056-67 (outdated) | |
| Compression Deflection | |
| Durometer Shore | |
| Density | |
| Tensile Strength | |
| Compression Set | |
| Elongation | |
| UL Rating | |
| Flammability | |
| R Value | |
| Application | |
| Industry | |
| Reach / RoHS | |
| Made in: | |
| Test Methods: | |
| Disclaimer a: | Technical data presented above is the foam/material prior to the adheisve. |
| Disclaimer b: | End user is responsible for determining the suitability of the product to application. |
| Terms and Conditions |
Technical data

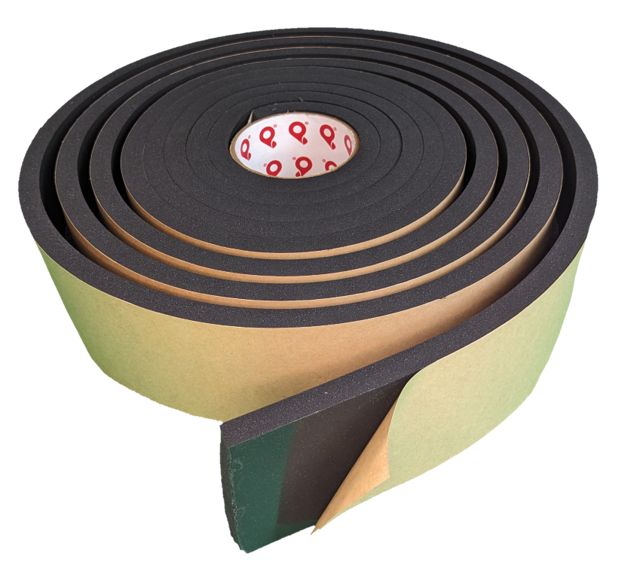

100% neoprene foam tape, medium density, closed cell, with a high-performance acrylic adhesive on one side.
- High-performance acrylic adhesive for a durable bond
- Closed cell foam
- Excellent temperature range
- Excellent weather resistance: UV and ozone
| Classifications | ASTM D1056-14 2C3 · ASTM D1056-67 SCE43 · SAE J18-02 2C3 | |
|---|---|---|
| ASTM D1056 suffix compliances | B2, C1, F1, M | |
| Flammability | Pass | FMVSS 302, ASTM D6576, UL 94 HBF, UL 94 HF1 (pass, not UL listed) |
| Color | Black | |
| Finish | Smooth | |
| Width | 42" (custom slit widths available) | |
| Thickness | .031", .063", .093", .125", .187", .25", .312", .38", .437", .5", .75" | |
| Density | 15 pcf | ASTM D1056 |
| Compression deflection | 9–13 psi | ASTM D1056 |
| Compression set (max) | 25% | ASTM D1056 |
| Water absorption (max) | 5% | ASTM D1056 |
| Temperature range | Foam −70°F to +200°F; adhesive −20°F to +200°F | ASTM D1056 / Pres-On PTM-2 |
| Tensile strength | 90 psi | ASTM D412 |
| Elongation | 250% | ASTM D412 |
| Peel adhesion, steel | Immediate 3.5 lb/in width or foam tear; after 24 h 7.0 lb/in or foam tear | PSTC-1 |
|---|---|---|
| Peel adhesion, polystyrene | Immediate 5.0 lb/in; after 24 h 7.0 lb/in or foam tear | PSTC-1 |
| Peel adhesion, powder paint | Immediate 3.5 lb/in; after 24 h 3.5 lb/in or foam tear | PSTC-1 |
| Static shear @ 72°F, 1 × 1 in, 500 g | Immediate | PSTC-7 |
| Static shear @ 72°F, 1 × 1 in, 100 g | 200 hours minimum | PSTC-7 |
Source: NE4300 data sheet (PDF). Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
