Additional information
| Material Category | |
|---|---|
| Material | |
| Cell Structure | |
| Stock or Special Order | |
| Type of Tape | |
| Adhesive | |
| Thickness | |
| Produced as | |
| Roll Widths | |
| Softness | |
| Color | |
| Texture | |
| Durability | |
| Material Price | |
| Foam High Temperature Rating | |
| Foam Low Temperature Rating | |
| Outdoor | |
| UV Exposure | |
| Adhesive Temperature Range | |
| ASTM D1056 Classification | |
| Compression Deflection | |
| Durometer Shore | |
| Density | |
| Compression Set | |
| Reach / RoHS | |
| Made in: | |
| Test Methods: | |
| Disclaimer a: | Technical data presented above is the foam/material prior to the adheisve. |
| Disclaimer b: | End user is responsible for determining the suitability of the product to application. |
| Terms and Conditions |
Technical data

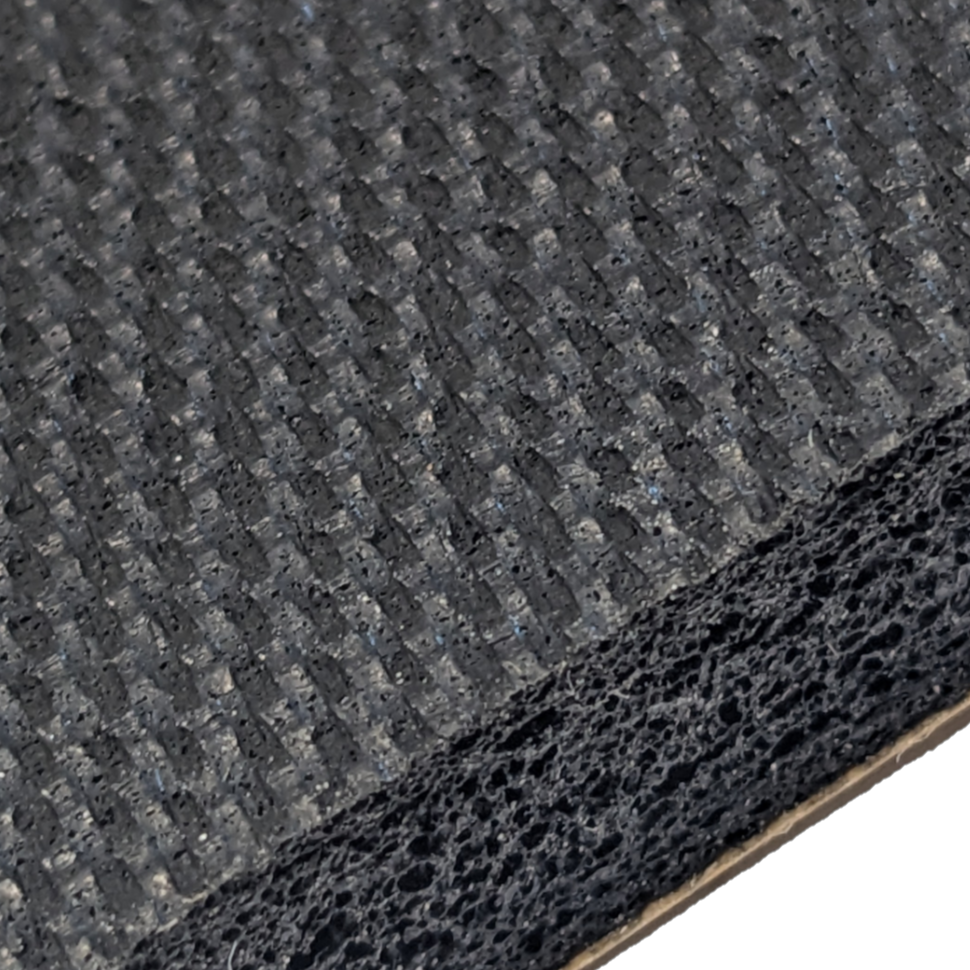

Natural sponge rubber tape with a criss-cross texture, soft density, open cell, with a high-performance acrylic adhesive on one side.
- High-performance acrylic adhesive for a durable bond
- Open cell foam
- For vibration mounts, thermal shielding and gasketing
- Excellent shock absorption
- Excellent weather resistance
| Classification | ASTM D1056 1A2 | |
|---|---|---|
| Color | Black | |
| Finish | Criss-cross texture | |
| Width | 54" (custom slit widths available) | |
| Thickness | .063", .125", .156", .187", .25", .312", .375", .437", .50" | |
| Density | 26 pcf | ASTM D1056 |
| Compression deflection | 5–10 psi | ASTM D1056 |
| Compression set (max) | 15% | ASTM D1056 |
| Temperature range | Foam −20°F to +160°F; adhesive −20°F to +200°F | ASTM D1056 / Pres-On PTM-2 |
| Tensile strength | Not rated | ASTM D412 |
| Peel adhesion, steel | Immediate 3.5 lb/in width or foam tear; after 24 h 6.0 lb/in or foam tear | PSTC-1 |
|---|---|---|
| Static shear @ 72°F, 1 × 1 in, 500 g | Immediate | PSTC-7 |
| Static shear @ 72°F, 1 × 1 in, 100 g | 200 hours minimum | PSTC-7 |
Source: P8000 data sheet (PDF). Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
