Technical data
Firm open cell polyurethane foam tape: breathable gasket with low compression set, dimensionally stable, with a permanent acrylic adhesive.
- Firm
- Breathable gasket
- Low compression set
- Dimensionally stable; thermoformable
- Permanent bond
| Material | Polyurethane (urethane) | |
|---|---|---|
| Cell structure | Open cell | |
| Softness | Firm | |
| Color | Black | |

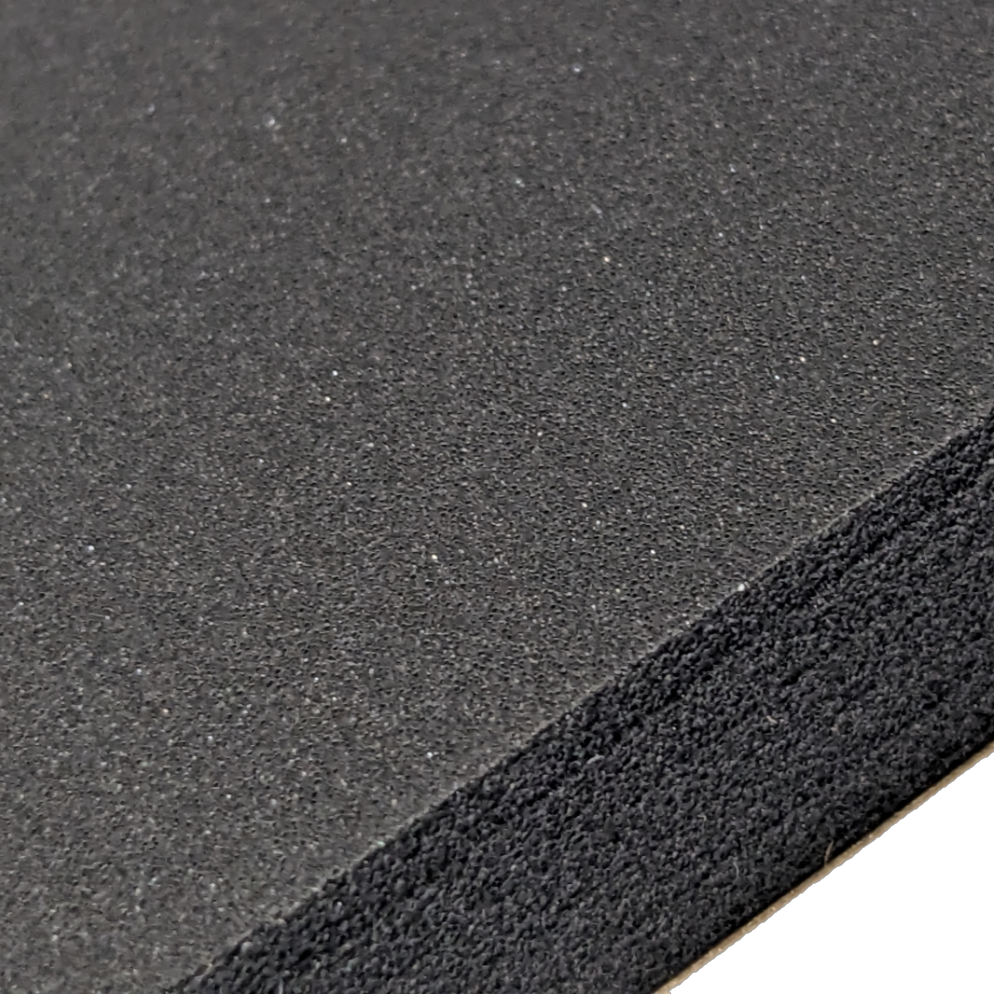

| Texture | Smooth | |
| Durability | Excellent | |
| Outdoor | Good | |
| Foam temperature rating | −40°F to 250°F | |
| Compression deflection | 30–50 psi at 25% compression | ASTM D1056 |
| Durometer, Shore | 70–80 OO (approximate) | |
| Density | 17–23 lb/ft³ | ASTM D3574 |
| Tensile strength | 240 psi | ASTM D3574 |
| Compression set | 3% | ASTM D1056 |
| Elongation | 150% | ASTM D3574 |
| Tear strength | 32 pli | ASTM D624 |
| Flammability | Foam passes at .063" or thicker | FMVSS-302 |
| REACH / RoHS | Yes | |
| Made in | Bolingbrook, IL, USA |
| Adhesive | Acrylic | |
|---|---|---|
| Type of tape | Single sided; plain (no adhesive) available | |
| Adhesive temperature range | −20°F to 200°F |
| Thickness | 1/32", 1/16", 1/8", 3/8" | |
|---|---|---|
| Roll widths | 1/4" to 54" wide | |

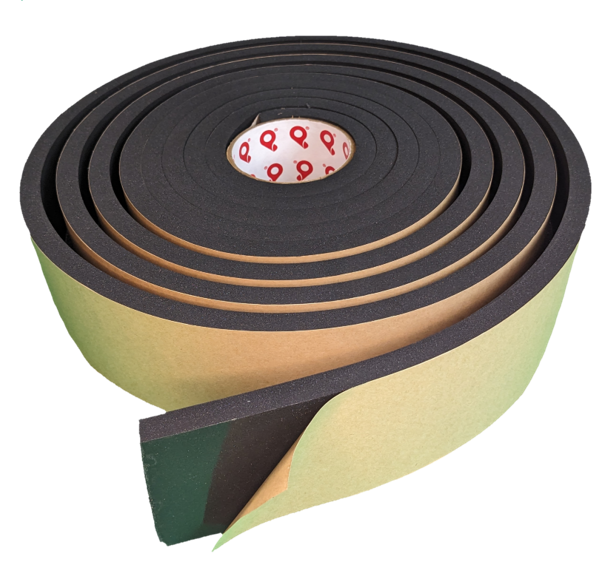

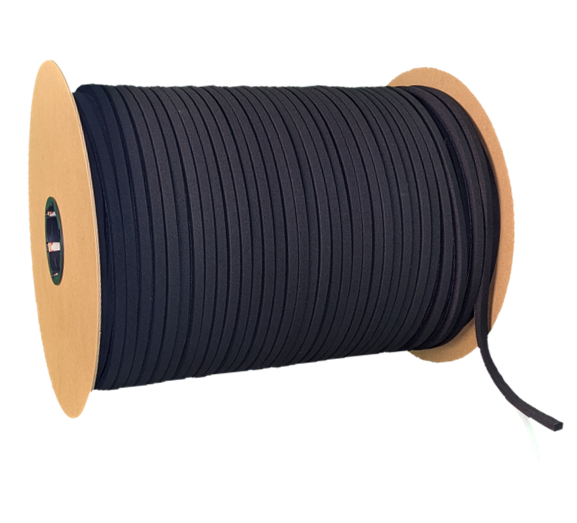

| Produced as | Rolls, spools, sheets, pre-cut shapes |
Source: U6500 data sheet (PDF), revision 05.10.2024. Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
