Technical data

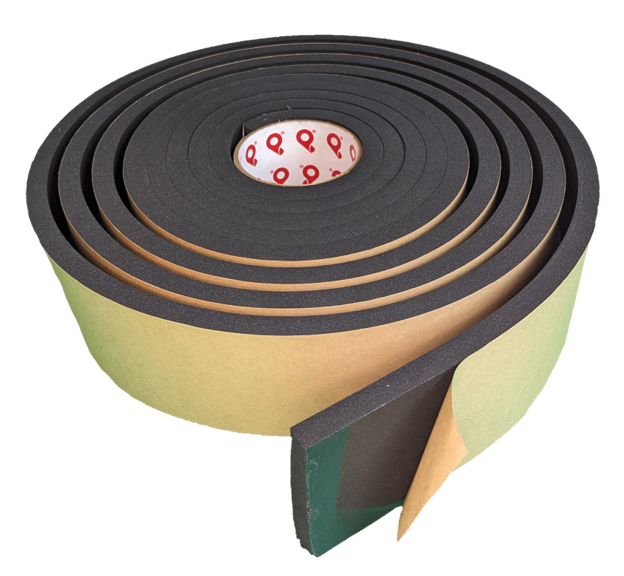

Medium-density open cell polyurethane structural glazing tape: breathable, UV resistant, low compression set, with a permanent acrylic adhesive.
- Medium density breathable gasket
- UV resistance
- Low compression set; dimensionally stable
- Permanent bond; flexible applications
Markets: Windows · Construction · Structural glazing · HVAC
| Material | Polyurethane (urethane) | |
|---|---|---|
| Cell structure | Open cell, breathable | |
| Softness | Medium | |
| Color | Black | |
| Texture | Smooth | |
| Durability | Great | |
| Outdoor / UV exposure | Excellent | |
| Foam temperature rating | −40°F to 250°F | |
| Compression deflection | 24–36 psi at 25% compression | ASTM D1056 |
| Durometer, Shore | 31 Shore A | |
| Density | 15–21 lb/ft³ | ASTM D3574 |
| Tensile strength | 200 psi | ASTM D3574 |
| Compression set | 3% | ASTM D3574 |
| Elongation | 125% | ASTM D3574 |
| Tear strength | 21 pli | ASTM D624 |
| Application | Structural glazing tape (windows) | |
| REACH / RoHS | Yes | |
| Made in | Bolingbrook, IL, USA |
| Adhesive | Acrylic | |
|---|---|---|
| Type of tape | Single sided; plain (no adhesive) available | |
| Adhesive temperature range | −20°F to 200°F (acrylic) |
| Thickness | 1/4" | |
|---|---|---|
| Roll widths | 1/4" to 54" wide | |
| Produced as | Rolls, spools, sheets, pre-cut shapes |
Source: SG6800 data sheet (PDF), revision 05.1.2024. Values are typical unless stated. Color and finish may vary by lot; tolerances vary with thickness and width. Confirm suitability for your application with Pres-On.
